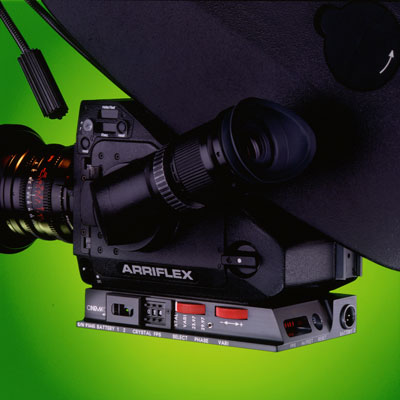

35-3 Crystal High Speed Control
Because of its many features, over a thousand Cinematography Electronics CRYSTAL HIGH SPEED CONTROLS
go to work each day supporting the Arri 35-3 camera. Among these impressive features are a broad
crystal speed range of 1 through 130 frames per second (fps) and speed selections in one frame
increments.
Crystal speed selections are easily accomplished with push button digit switches that are protected
by a sliding door. Additional crystal speeds of 23.976 fps and 29.970 fps for filming NTSC video
monitors are built into the speed base. (A 50 Hertz version is available with speeds of 16.666 fps
and 33.333 fps in place of the NTSC television speeds.)
Another feature of the CRYSTAL HIGH SPEED CONTROL is the phase shift push button. This button is
active in all crystal speeds and is used (while the camera is running) to slightly shift the camera
filming speed for proper phasing to monitors, projectors or HMI lights.
Non-crystal speeds are continuously and smoothly adjustable with the variable speed edge control knob
over a speed range of 3 through 130 fps. For creative filming, the speed base drives the camera
forward or reverse at all speeds.
A single 12 volt battery is required for filming speeds below 50 fps, and two 12 volt batteries are
needed above 50 fps. Two battery indicator LEDs show the voltage condition of the batteries at all
times.
Located at the rear of the CRYSTAL HIGH SPEED CONTROL are two bright red digital displays. The
tachometer display shows the running speed of the camera, or a preview of the selected speed when
the camera is off. The footage/meter counter, with a reset push button and a four hour memory
backup, displays the total film count.
The CRYSTAL HIGH SPEED CONTROL comes complete with two built-in right angle cables that interface
between the camera and speed base. For interfacing with other devices, the speed base provides two
Fischer 11 pin accessory connectors.
These connectors are compatible with accessories such as the Syncromark Laser System or the Remote
Tach & Counter. To maximize your accessory options, we suggest the Cinematography Electronics
Accessory Block as the perfect complement to your CRYSTAL HIGH SPEED CONTROL. Also available is an
optional Follow Focus Bracket.
From its impressive list of features to its thoughtful design and execution, the CRYSTAL HIGH SPEED
CONTROL was created to unlock the full potential of your Arri 35-3 camera.
Specifications:
|
35-3 CRYSTAL HIGH SPEED
CONTROL |
|
Size: |
Inch: 4.7 x 7.9 x 1.2 mm: 120 x 200 x 31 |
Weight: |
36 oz (1.0 kg) |
Construction: |
Machined Aluminum (Not Cast) |
Finish: |
Black Anodize, Engraved |
Edge Knob Select Switch: |
Rotary, 4 Position |
Crystal Speed Range: |
1 to 130 fps in 1 fps increments |
Crystal Speed Select Switches: |
3 Digit Push Button |
Speed Select Protection: |
Sliding Door |
Crystal Accuracy: |
0.002% |
NTSC TV Speeds: |
23.976 fps and 29.970 fps |
50 Hz Speeds: |
16.666 fps and 33.333 fps |
Variable Speeds: |
3 to 130 fps, Continuous |
Reverse Running: |
All Speeds |
Forward/Reverse Running Switch: |
Push Button (Screwdriver Accessible) |
Phasing Speeds: |
All Crystal Speeds |
Phase Switch: |
Push Button, Momentary |
Phase Adjustment: |
Approximate +0.1 fps |
Digital Tachometer: |
Bright Red LED (With Speed Preview) |
Digital Footage/Meter Counter: |
Bright Red LED |
Footage/Meter Select Link: |
2 Pin (Internal) |
Counter Reset Switch: |
Push Button, Momentary |
Counter Memory: |
4 Hours Minimum |
Battery Indicators: |
Bright Red, Yellow and Green LEDs |
Battery 2 Connector: |
Switchcraft D4M 4 Pin |
Speed Acceleration Ramp: |
Linear, Automatic |
DC Power Requirement 1-50fps: |
12 Volt |
DC Power Requirement 50-130fps: |
2 x 12 Volt |
Current Consumption: |
200 mA |
Accessory Connectors: |
Fischer D104 11 Pin (2) |
Follow Focus Bracket: |
Machined Aluminum |
Camera Lockdown Screw: |
3/8-16 |
Balance Plate Mounting: |
3/8-16 Threaded Hole and Locating Hole |
|
|
Selectable, 60 HZ HMI Flickerfree Filming
Speeds:
|
120, 60, 40, 30, 24, 20, 15, 12, 10, 8, 6, 5, 4, 3, 2 & 1 fps |
Selectable, 50 HZ HMI Flickerfree Filming Speeds: |
100, 50, 33.333, 25, 20, 16.666, 10, 5, 4, 2 & 1 fps |
|
|
