AIR Mobile 2

AIR MOBILE 2

The new CINETAPE 2 has an accessory for wireless communication, the AIR MOBILE 2. The AIR MOBILE 2, the wireless companion to the CINETAPE 2, is a small, lightweight, battery operated unit that attaches to any hand held FIZ unit or monitor. The AIR MOBILE 2 is linked to the CINETAPE 2 by a 2.4 GHz radio with a solid 500 foot range that is not limited to line-of-sight. Choose from 40 channels for clear connections. In addition, Bluetooth connectivity is built in. Integrated antennas are internal, so they are protected from damage.

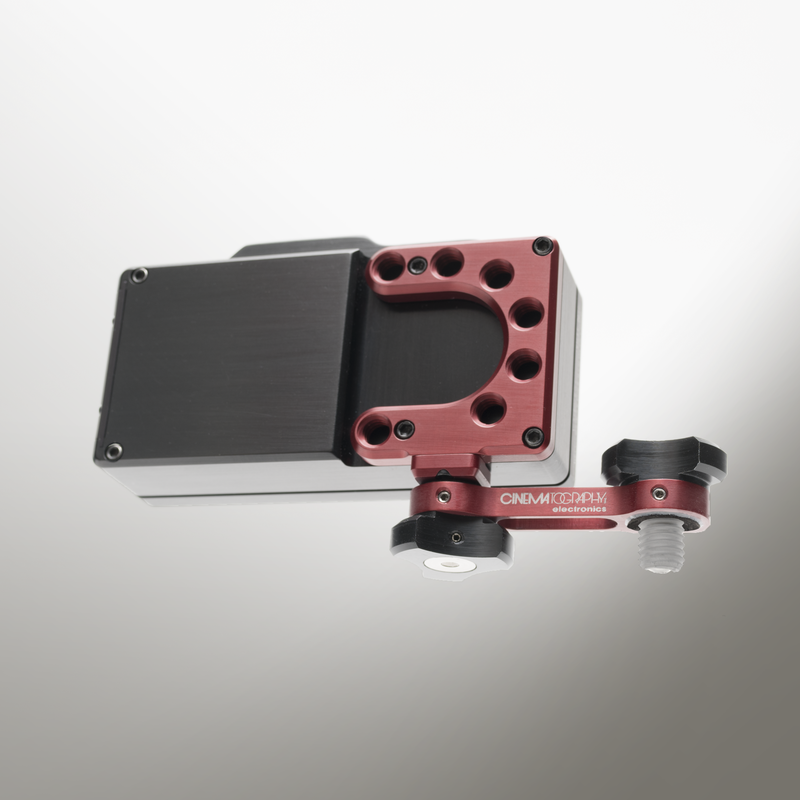

Mounting our AIR Mobile 2 is easy and flexible. It has eight (8) mounting holes that facilitate a variety of mounting options. Seven (7) of the holes are on the rear surface and an eighth hole is on the bottom. All of these ΒΌ - 20 threaded holes are on a removable plate, which simplifies future customization. The threaded holes combined with our new lightweight Mini Dogbone Bracket provide numerous attachment possibilities.

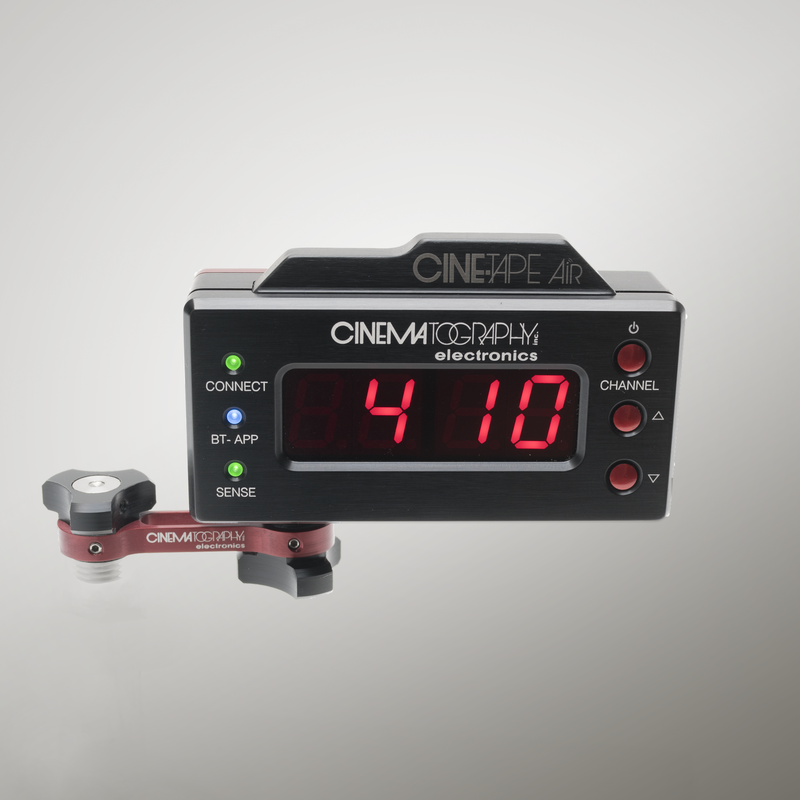

The AIR MOBILE 2 has a large red LED display, and LED indicators for Sense, Connect and Bluetooth. The AIR MOBILE 2 is powered by a small, removable battery that lasts an incredible 8-10 hours before recharging.

As with all Cinematography Electronics products, the quality is built in.

AIR MOBILE 2

Click for larger image


Specifications:

AIR MOBILE 2 (Wireless Remote)

Size: Inch: 3.55 x 2.1 x 1.05   mm: 90.2 x 54.3 x 26.7
Weight without Battery: 4.7 oz. (133 Grams)
Weight with Battery: 5.5 oz. (156 Grams)
Construction: Machined Aluminum (Not Cast)
Finish: Black Anodize, Engraved
Measurement Units: Feet & Inches or Meters & Centimeters
Antennas: Integrated and Internal
Wireless Range: 500 Feet (150 Meters)
Wireless Channels: 40 Selectable
Power / Channel Switch: Pushbutton
Up Switch: Pushbutton
Down Switch: Pushbutton
Bluetooth iPhone Range: 25 Feet (8 Meters)
BT iPhone Device Compatibility: iPhone, iPad, iPod Touch
BT-APP Connection Indicator: Bright Blue LED
Numeric Display: Bright Red LED (4 Digit)
Sense Indicator: Bright Green LED
Low Battery Indicator: Bright Red LED
Circuit Protection: Auto Reset Fuse
Battery Requirements: 3.6 Volts Sony NPBX1 (Rechargeable)
Battery Life: 8-10 Hours
Battery Release: Sliding Door
Mounting: 1/4-20 Threaded Hole (8)

Additional System Components

CINETAPE 2

SENSOR ASSEMBLY

AIR MOBILE 2

CINETAPE AIR App

EXTENSION TUBES

Mini Dog Bone Bracket

CineArm Articulating Support (3/8-16 to 1/4-20)

Pelican Carrying Case



Available Cables

Power Cables

Sensor Cables

Interface Cables
