Add another dimension of creativity to your photography with the Cinematography
Electronics INTERVALOMETER. It makes time-lapse photography simple. With this
INTERVALOMETER, a relatively slow changing event can be recorded on film and then
projected over a few seconds or minutes. For example: photograph a sunrise, sunset, a
flower slowly opening, building construction, traffic flow, or weather patterns and
compress the actual time to suit your needs.
|
 |
|

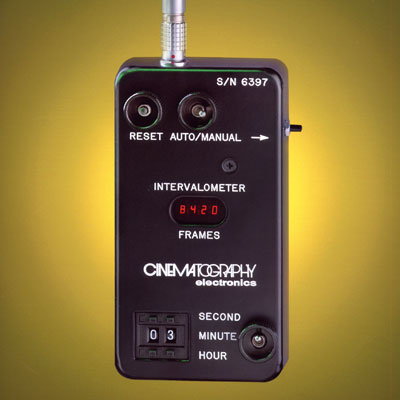

Intervalometer
The Cinematography Electronics INTERVALOMETER is compatible with many 16mm and 35mm cine and still
cameras including Arriflex, Mitchell, Nikon, and Canon.
Choose from 300 highly accurate crystal interval settings from 1 second to 100 hours. Actual exposure
time will be determined by the camera used. The INTERVALOMETER has an LED digital counter with reset
that displays the number of film frames that have been exposed. It also has a manual trigger button
for special intervals or testing.
In most cases, a single cable connects the INTERVALOMETER and the camera. Battery power and camera
trigger connections are made through this cable For cameras that cannot furnish the proper voltage
(12-40 V), an additional auxiliary battery cable is available. This INTERVALOMETER will trigger the
camera with either a shorting contact or a positive trigger pulse and is not polarity sensitive. To
interface with the Cinematography Electronics INTERVALOMETER, cine cameras must have single frame
capability and still cameras must be equipped with a motorized winder and external trigger
connector.
Specifications:
|
INTERVALOMETER |
|
| Size: |
Inch: 2.4 x 4.4 x 1.2 mm: 60 x 110 x 32 |
| Weight: |
7 oz. (195 Grams) |
| Construction: |
Rugged Die Cast Aluminum |
| Finish: |
Satin Black Paint over Black Anodize |
| Crystal Interval Range: |
1-100 Units |
| Crystal Interval Switches: |
2 Digit Push Button Module |
| Crystal Accuracy: |
0.002% |
| Second, Minute, Hour, Switch: |
Toggle, 3 Position |
| Automatic Manual Switch: |
Toggle |
| Manual Trigger Switch: |
Push Button, Momentary |
| Digital Frame Counter: |
Bright RED LED |
| Counter Reset Switch: |
Push Button, Momentary |
| Electrical Connector: |
Lemo 4 Pin |
| DC Power Requirements: |
9 to 32 Volts |
| Current Requirements: |
120 mA |
|
|
|
| Aaton |
7 LTR, 54 LTR, LTR-X, XC, XTR, XTR+, XTR Prod, XO+, X Prod, 35MM (Type 1, 2,
3)
|
| Arriflex |
16SR (1, 2, 3)**, 16SRHS (1, 2, 3)**, 35-3**, 35-2A*, 35-2B*, 35-2C*, 35-3C*
|
| |
|
| |
* With Cinematography Electronics 2C Crystal Motor Base |
| |
** Requires Single Frame Kit |
|
System Components
Cables
- Intervalometer Cable
- Single Frame Push Button Cable
Kits
|
|
|
|
