CineTape 2

Introducing CINETAPE 2

The industry standard CINETAPE MEASURE has been redesigned and now includes built-in wireless communication. The new Cinematography Electronics CINETAPE 2, is smaller, lighter and faster. Same great features and quality, plus more.

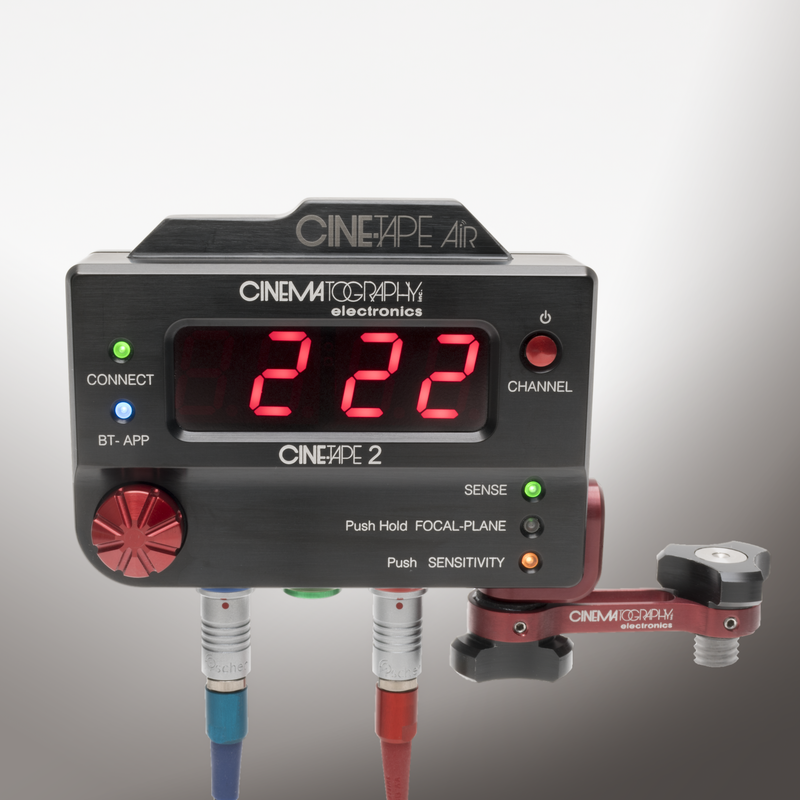

CineTape 2 Control

The CINETAPE 2 Control is lighter and smaller than the original CINETAPE. It continuously calculates the distance between the camera’s film plane and the subject. All of the original CINETAPE features are included in the CINETAPE 2. In addition, we added a 2-way wireless radio, that communicates with our AIR Mobile 2 at a strong 500 foot range. We also added BlueTooth compatibility which connects the CINETAPE 2 to an iPhone, via the CineTape Air App. Our App adds many additional features to the new CINETAPE 2.

The CineTape 2 has a variety of camera mounting options. In addition to the dovetail-mounting slot, we have added two ¼-20 threaded mounting holes, 90 degrees apart. These holes and our new lightweight Mini Dogbone Bracket provide numerous attachment possibilities.

CineTape 2 next to CineTape Measure

Click for larger image

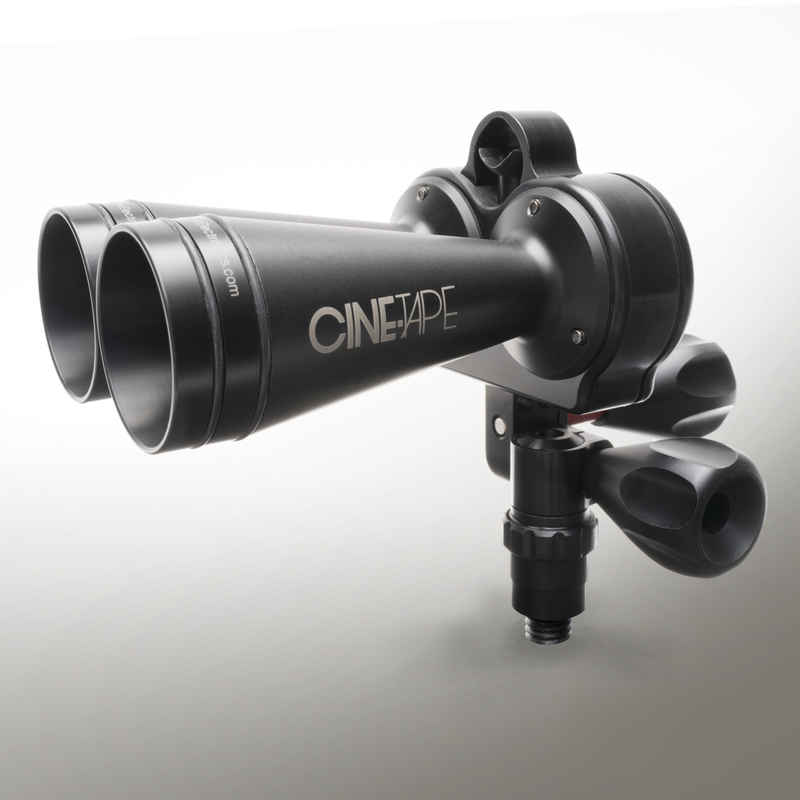

Sensor Horn Assembly

The HORN ASSEMBLY, using ultrasonic signals, sends measurement information to the CineTape 2 Control, which instantly displays the distance. The pan and tilt adjust/lock knobs make aiming the horns toward the subject, quick and easy. It can be mounted in numerous configurations with the attached combo stud.

CineTape Measure

Click for larger image


Specifications:

CINETAPE 2

Size: Inch: 3.45 x 2.67 x 1.02   mm: 87.6 x 67.8 x 26
Weight: 6 oz. (171 Grams)
Construction: Machined Aluminum (Not Cast)
Finish: Black Anodize, Engraved
Measurement Units: Feet & Inches or Meters & Centimeters
Measurement Resolution: 1 inch; 1 cm
Focal-Plane Offset Range: -9 to 99 ft; -3 to 30 m
Close Focus Range: 12 to 30 inch; 30 to 90 cm
Sensitivity Range: 0 to 99 %
Sensitivity Adjustment: 5 % Increments
Select / Adjust Switch: Red Knob
Connect Indicator: Bright Green LED
Antennas: Integrated and Internal
Wireless Range: 500 Feet (170 Meters)
Wireless Channels: 40 Selectable
Power / Channel Switch: Red Button
Bluetooth iPhone Range: 25 Feet (6 Meters)
Bluetooth Compatibility: iPhone, iPad, iPod
BT-APP Connection Indicator: Bright Blue LED
Power Connector: Fischer 3 Pin
Remote Connector: Fischer 4 Pin
Sensor Connector: Fischer 5 Pin
Numeric Display: Bright Red LED
Sense Indicator: Bright Green LED
Focal-Plane Adjust Indicator: Bright Yellow LED
Sensitivity Adjust Indicator: Bright Yellow LED
Circuit Protection: Auto Reset Fuse
DC Power Requirements: 9 to 32 Volts
Current Consumption: 50 to 150 mA
Mounting: 1/4-20 Threaded Hole (2)

Specifications:

SENSOR ASSEMBLY

Size: Inch: 3.5 x 5.4 x 3.6   mm: 88 x 137 x 92
Weight: 5.6 oz. (160 Grams)
Construction: Machined Delrin and Aluminum
Sensor Connector: Fischer 5 Pin
Pan Rotation: 360°
Tilt Movement: 180°
Pan and Tilt Lock: Twist Lock Knob (2)
Mounting Hole: 1/4-20 Threaded
Mounting Stud: 3/8-16 Threaded
Mounting Diameter: 5/8 inch, 15 mm, 19 mm
